AirDog II Fuel Air Separation System
Featuring Demand Flow Technology! |
 AirDog
II Fuel Air Separation System featuring Demand
Flow Technology

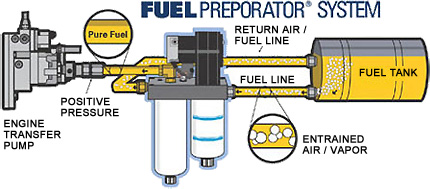

AirDog II is designed
to operate at flows and pressures beyond the
maximum requirements of the engine. It receives
fuel under vacuum from the fuel tank containing
entrained air/vapor, particulate contaminates
and unknown quantities of water.
The fuel
passes through the water separator which removes
the large particulate contaminates that could
damage or jam the gerotor fuel pump. The fuel,
with only entrained air/vapor and tiny
particulate contaminates remaining, and then
enters the fuel pump.
The fuel, now under
positive pressure flow, enters the fuel filter.
As the fuel passes through the filter media and
the remaining particulate contaminates are
caught and contained, the entrained air/vapor is
also separated. Through the positive fuel air
separation features of the patented AirDog II
the separated air/vapor is discharged from the
filter and back to the fuel tank through the
Primary Air/Vapor Discharge Port.
The
fuel passing through the filter media is now
free of contaminates and power robbing
air/vapor. At pressures and flows able to meet
the needs of the engine, it exits the fuel
filter through two passageways. First, the fuel
for the engine passes into the fuel pickup tube
and on to the engine. Then, the excess fuel not
needed by the engine recycles internally through
the pressure regulator back to the water
separator. |
|
 |
 |
Your
Choice!
18% Off
Jobber!
$549.40
Each! |
|

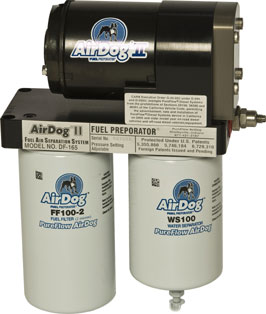

AirDog II DF-165
2001- 2010
Chevy Duramax |
AirDog II
DF-165
1998.5-2004
Dodge Cummins |
ADGA5SABC109 |
ADGA5SABD025 |
|
|
Check It Out! |
 |
|
Advancing the AirDog Tradition with New and
Unique Features! |
The patented
AirDog II system removes entrained air/vapor
from diesel fuel, improving engine performance!
Benefits:
•
Maintaining Correct Injection Timing
•
Eliminating Spray Pattern Disruption
• Allowing
for a Full Power Stroke and Complete Burn
Provides:
• Increased Fuel Economy
•
Increased Power Output
• Increased Torque
Output
• Longer Injector Life
• Improved
Throttle Response
• Reduced Exhaust Emissions
•
Optimized Engine Performance
AirDog II
also overcomes loss of power for diesel engines
operating at higher altitudes! |
